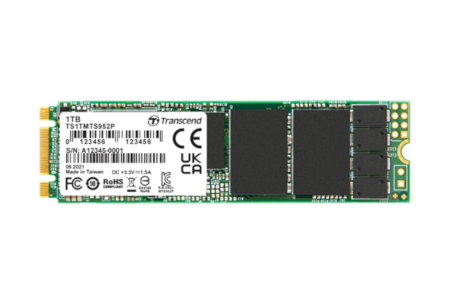

MTS952P

Transcend’s MTS952P M.2 SSD features the SATA III 6Gb/s interface, delivering superior transfer speeds. The MTS952P features the latest 3D NAND technology for high storage efficiency, 30µ” PCB gold finger and Corner Bond technology for enhanced durability, built in DRAM cache for fast access, an extended operating temperature range from -20°C to 75°C, and an endurance rating of 3K Program/Erase cycles for reliable operation. The built in Intelligent Power Shield (IPS) further ensures data integrity in mission critical applications.

96 layer 3D NAND Flash

30µ” PCB gold finger

Corner Bond

Extended Temperature

Dynamic Thermal Throttling

Read Disturbance

Garbage Collection

Wear Leveling

TRIM

Bad Block Administration

Early Move

Intelligent Power Shield

Specifications

FIRMWARE FEATURES

  • Dynamic thermal throttling
  • Built in LDPC ECC (Error Correction Code) functionality
  • Advanced Garbage Collection
  • S.M.A.R.T. function for enhanced endurance
  • TRIM command for better performance
  • NCQ command for better performance
  • Power saving DevSleep (Device Sleep) mode

HARDWARE FEATURES

  • Compliant with RoHS standards
  • Space saving M.2 form factor (80 mm) – ideal for mobile computing devices
  • DDR3 DRAM Cache embedded
  • Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
  • Key components fortified by default with Corner Bond technology
  • 30µ” PCB gold finger
  • Intelligent Power Shield (IPS) to prevent data loss in the event of sudden power outage
  • Supports Transcend Scope Pro software

SPECIFICATIONS

APPEARANCE
DIMENSIONS 80.0 mm x 22.0 mm x 3.58 mm (3.15″ x 0.87″ x 0.14″)
WEIGHT 9 g (0.32 oz)
FORM FACTOR
  • M.2
M.2 TYPE
  • 2280-S3-B-M (Single sided)

INTERFACE
BUS INTERFACE
  • SATA III de 6Gb/s

STORAGE
FLASH TYPE
  • 3D NAND flash
CAPACITY
  • 64 GB/
  • 128 GB/
  • 256 GB/
  • 512 GB/
  • 1 TB

OPERATING ENVIRONMENT
OPERATING VOLTAGE
  • 3.3V±5%
OPERATING TEMPERATURE
  • Extended

    -20°C (-4°F) ~ 75°C (167°F)
STORAGE TEMPERATURE -55°C (-67°F) ~ 85°C (185°F)
HUMIDITY 5% ~ 95%
SHOCK
  • 1500 G, 0.5 ms, 3 axis
VIBRATION (OPERATING) 20 G (peak to peak), 7 Hz ~ 2,000 Hz (frequency)

POWER
POWER CONSUMPTION (OPERATING) 1.8 watt(s)
POWER CONSUMPTION (IDLE) 0.4 watt(s)

PERFORMANCE
SEQUENTIAL READ/WRITE (CRYSTALDISKMARK) Read: Up to 560 MB/s
Write: Up to 520 MB/s
4K RANDOM READ/WRITE (IOMETER) Read: Up to 95,000 IOPS
Write: Up to 85,000 IOPS
MEAN TIME BETWEEN FAILS (MTBF) 3,000,000 hour(s)
TERABYTES WRITTEN (TBW) Up to 1,760 TBW
DRIVE WRITER PER DAY (DWPD) 1.61 (3 years)
NOTE
  • Speed may vary due to host hardware, software, usage, and storage capacity.
  • The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
  • Terabytes Written (TBW) expresses the endurance under the highest capacity.
